Dust Collection Systems
Industry Air Sales is partnered with Euro Vac to provide you with the most secure and reliable collection systems in Canada. With more than 75 years of experience you can count on us to answer any questions you have, and provide you with a system that meets all your needs.
Dust System Specifications
We offer a wide varied of dust collection systems to suit any need. The following specifications are just some of the systems we can design for you. Reach out today to get started on your dust collection system.
Cartridge Collection
Minimize and remove harmful pollutants produced during the production and manufacturing processes. The equipment is designed to separate and capture particulate matter and dust from the air through the filter and then releases clean, breathable air back into the workplace.

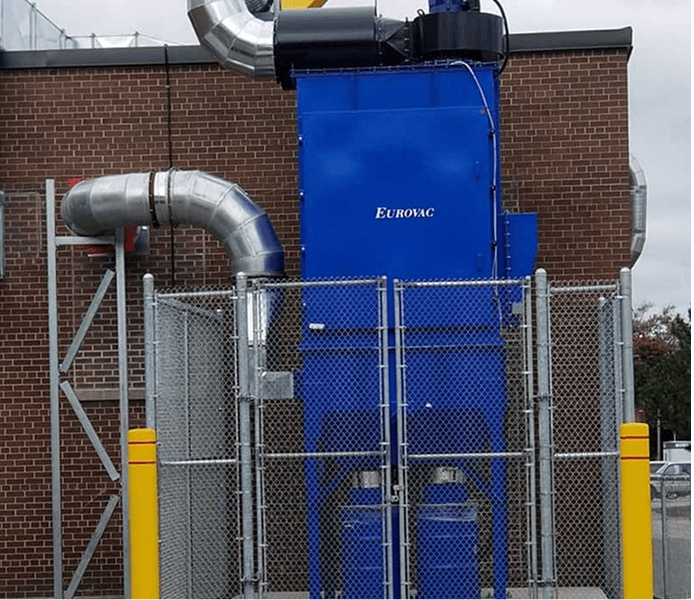

Shaker Collection
An intermittent style dust collectors which utilize an automatic shaking mechanism to clean the filters once the exhaust fan is shut down. These are ideal for intermittent sawdust applications as well as for other types of fibrous types of dust.

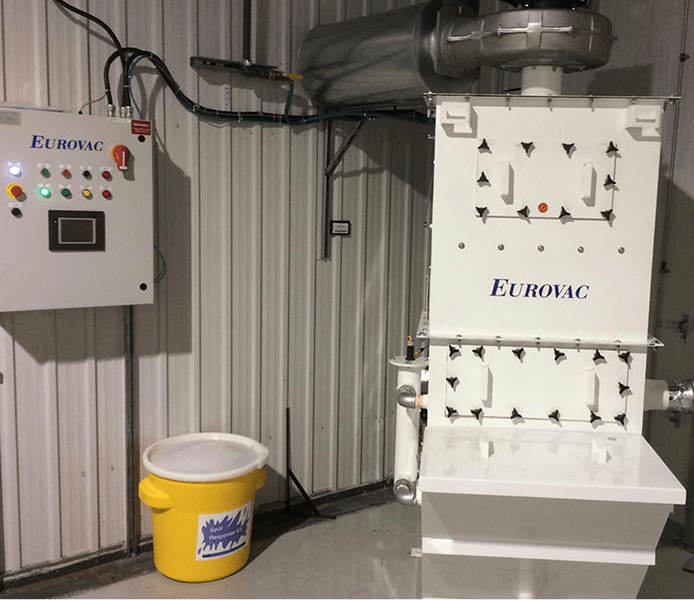

Wet Collection
Used for the collection of wet or explosive types of dust. These dusts are introduced into a bed of water at a high velocity through a venturi and then separated through a system of baffles and mist eliminators. The dust remain in the water sump and the clean air is exhausted out of the equipment back into the shop or outdoors.

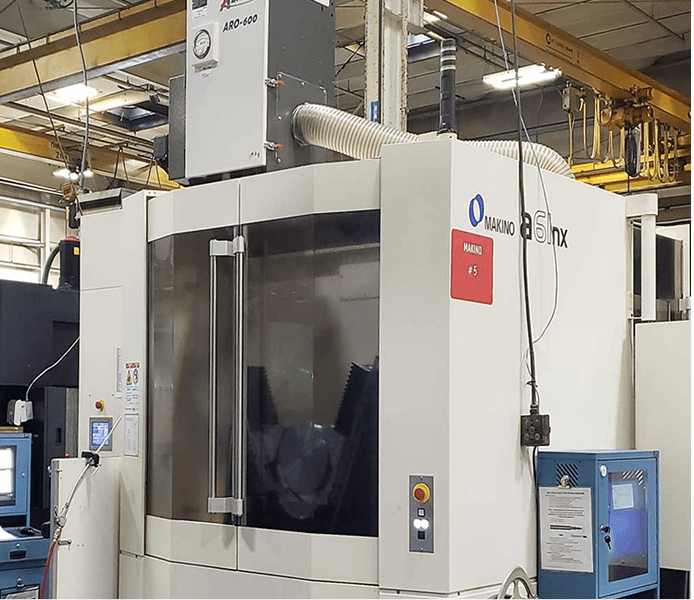

Oil Mist Collection
The generation of oil mist from machining operations can cause a variety of health concerns, as well as create an unsafe work environment by coating walls and floors with a slippery oil film. When the machine disperses oily liquid aerosol, it can linger in the atmosphere for a long period of time and be ingested unknowingly.
Cyclone Collection
Dust laden air enters the cyclone at an angle into the cyclone chamber, where the dust particles hit a helix-shaped baffle, and then the cylinder wall. Centrifugal force and gravity drops the heavy particles to the bottom of the unit. Smaller particles may be filtered out by a smaller vortex. Clean air passes back out through an outlet and into a fan.

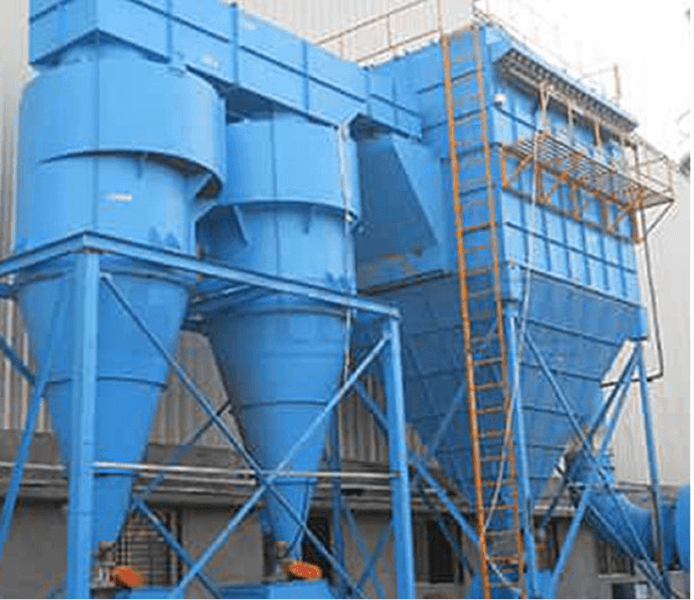

Baghouse Collection
Highly efficient dust collectors utilizing various styles of woven or felt bags to filter dust-laden air. Typically used for higher dust loading or fibrous dust applications. The dust is filtered on the outside of the fabric bags and the falls into the collection device below. Pulse jet cleaning is used to clean the bags to extend their life.

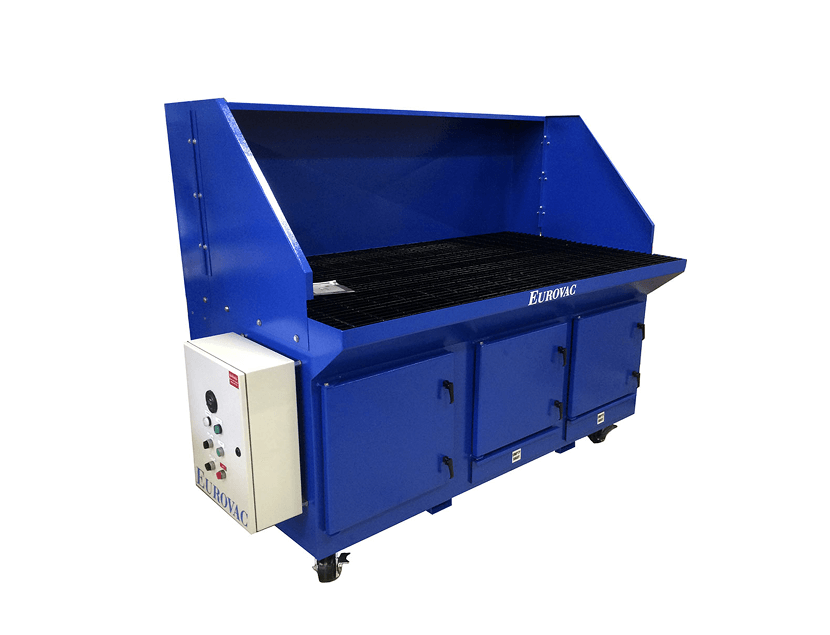

Downdraft Tables & Benches
Self-contained work bench/fan assembly designed to extract dust and fumes from table-top operations such as grinding, sanding and other finishing applications. They are available with cartridge filters for dry applications and a wet scrubber design for explosive dust applications.
Protect your workers from occupational safety and health hazards with premium downdraft tables for Ontario industry and businesses. Our tables (which also act as self-contained air filtration systems), provide safer work environments. They remove harmful air pollutants from the breathing zones of workers and return filtered, clean air back into the workplace.
Dust Collector Accessories
- Centrifugal Exhaust Fans & Exhaust Silencers: Integrally mounted or remote mounted fans and exhaust silencers are both readily available for use with any type of dust collection system depending upon application requirements. Proper selections are made for each individual application.
- Inlet Isolation Valves: Also commonly referred to as No-Return Valves, these dampers prevent explosive forces from travelling back up the ducting to the workspace. NFPA 69 recommendations state that unless an explosion suppression system is being used, that these valves must be used with any dry dust collection system that is collecting an explosive dust.

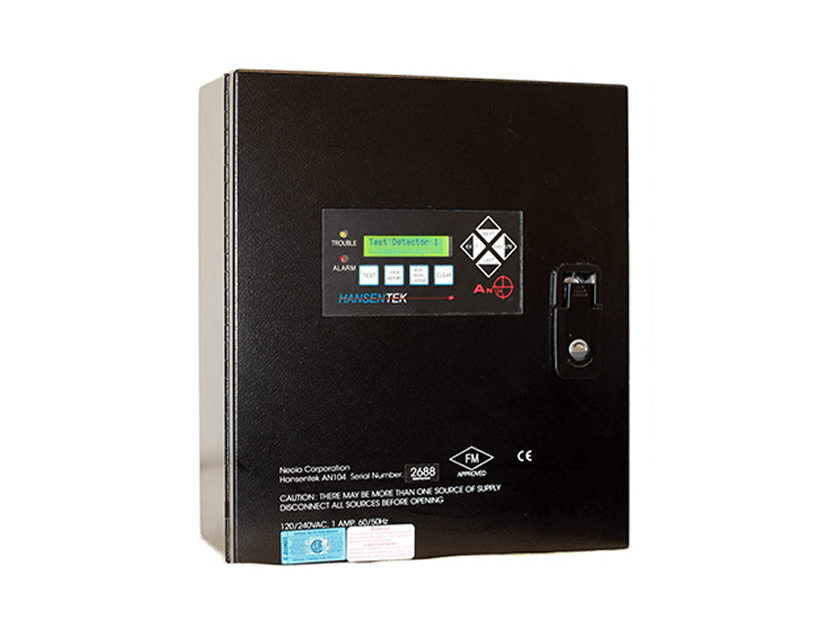

- Spark Detection Systems: Infra-Red detectors installed in the inlet ducting coupled with spray nozzles an abort damper and a control panel offer protection to the dust collector should a spark or ember enter the ducting.
- Motor Control Panels: Every dust collection system requires controls to manage the functionality of its various components. Control panels can be a simple on/off switch or one encompassing many different control features including a PLC, a soft-starts or a VFD. We offer c-ETL-us certified panels with all our systems.
- Emission Monitoring Systems: Emission monitoring systems will advise of any dust bypass that may occur through a dust collection system. Signals can be sent back to the control panel provide warnings or even shut the system down if required.
- HEPA After-Filter Housings: HEPA filtration will ensure that any dust that may bypass the dust collector will be captured to prevent recirculation back into the building. Can be used in conjunction with the emission monitoring system.
Used Dust Collectors
Industry Air Sales has availability to a wide variety of good, used dust collection equipment through a network of existing customers looking to upgrade and used equipment dealers. The availability constantly changes so, if you are on a tight budget please contact us with your needs and we will see if we can locate the right equipment for you. We will ensure that the equipment is overhauled and ready to put into service when it is received at your site.
